MA self-sinking system

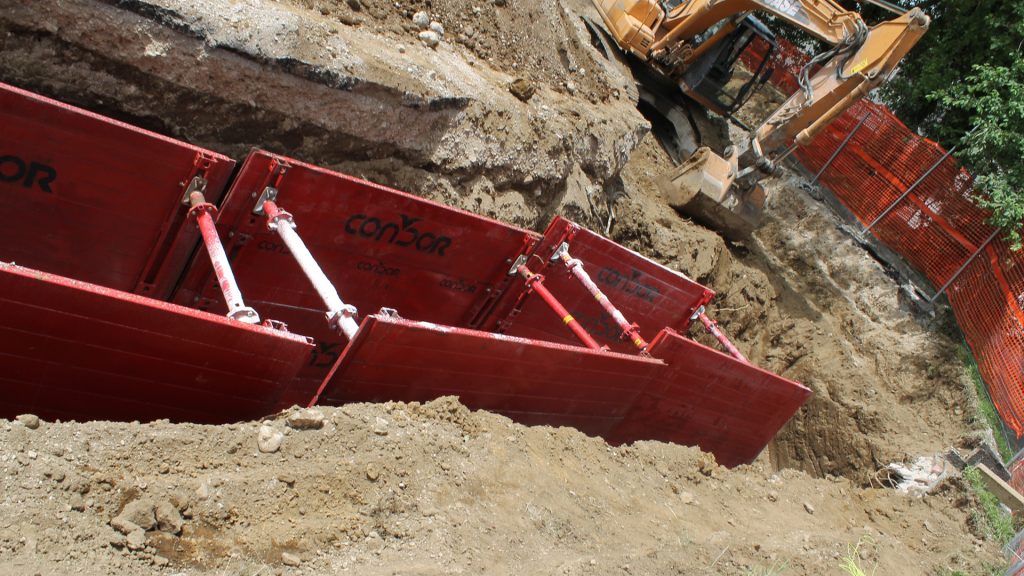

CONDOR developed the MA trench shoring system, in order to guarantee maximum safety in trenching works up to maximum 4.40 m depth with soil of good consistency.


The system is used already assembled in the job site.

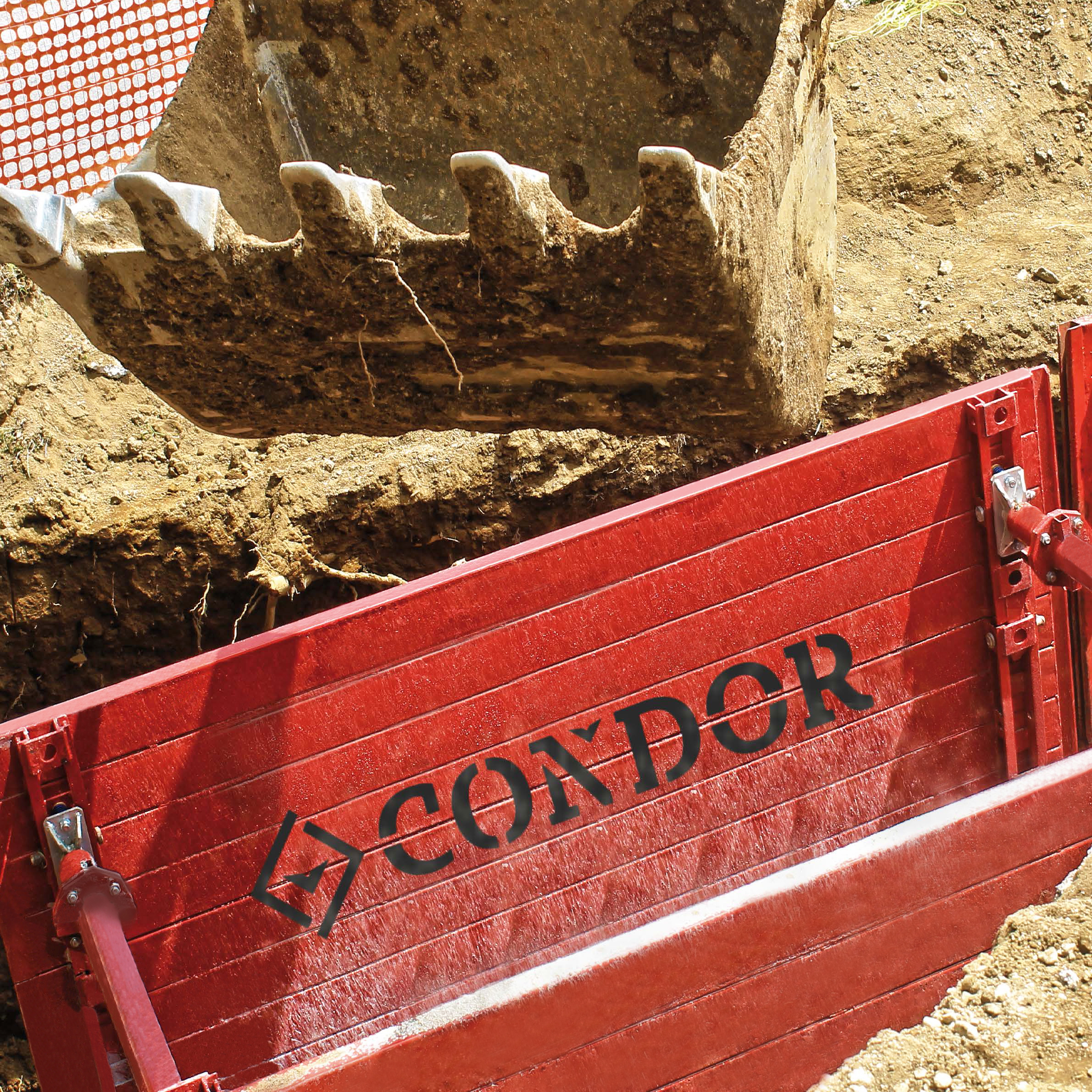

The MA trench shoring is made up of a standard 3.00m x H=2.00m panels, connected with adjustable spacers.
If excavation is deeper, it’s possible to install elevation elements.
By combining elevation panels to the standard ones the maximum depth reachable is 4,40m in absolute safety.

The system is designed to withstand a pressure up to 22 kN/m².
