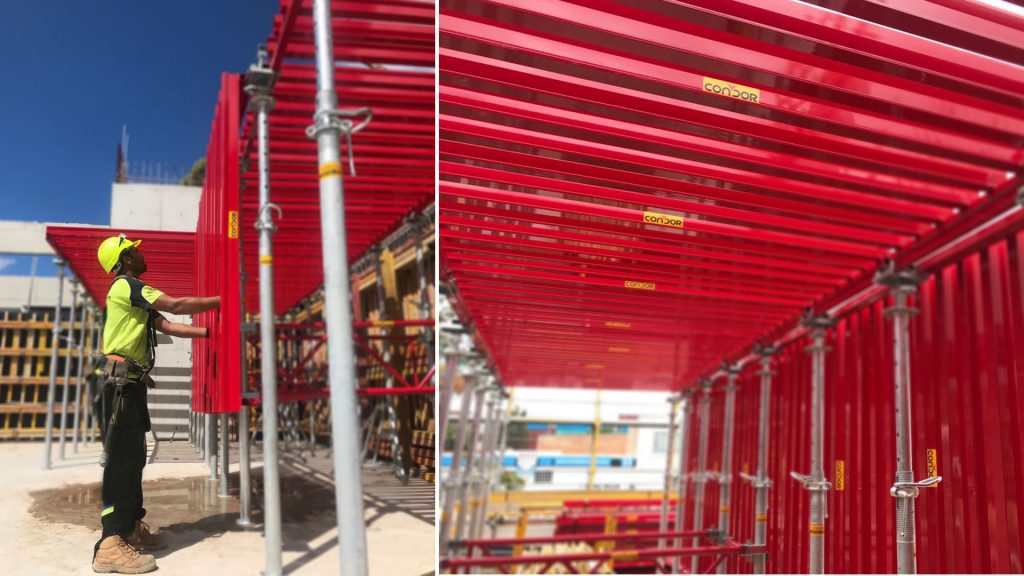

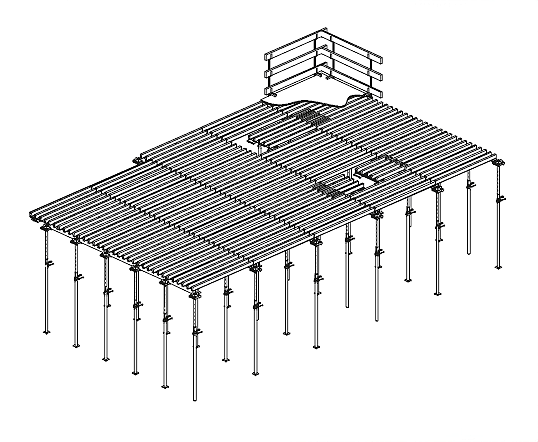

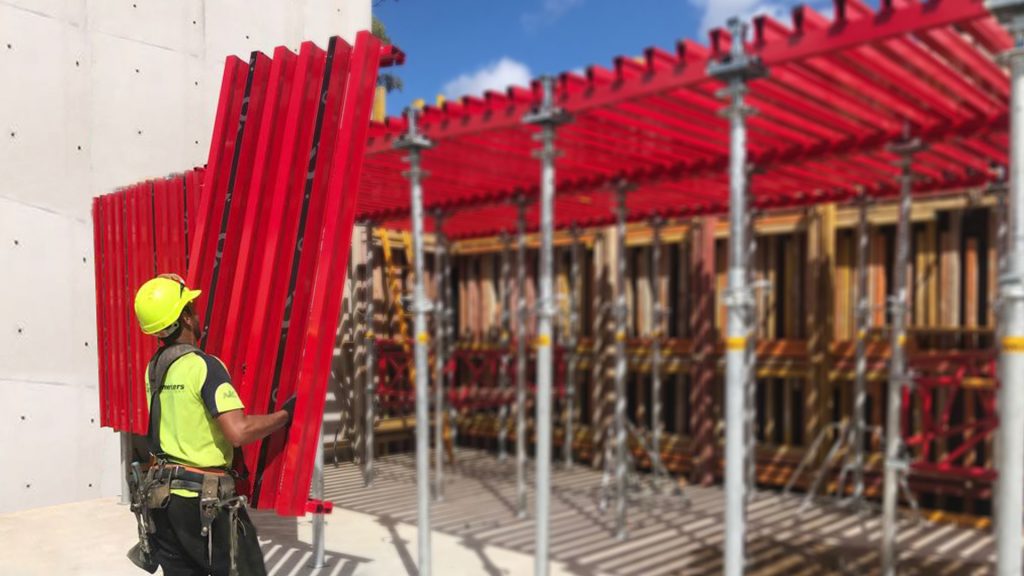

AluGD Slab Formwork System

AluGD is a formwork system that was designed to allow the realization of traditional slabs with joists and hollow clay blocks; it is also used for concrete slabs:

• up to 45cm module 100x200cm

Standard module = 2,00m x 1,00m.

Wheelbase girder grid = 113 mm.

Component weight < 25kg

The AluGD modules are of these types:

• Standard
• For longitudinal compensations
• For transversal compensations

The support heads in the AluGD system are different:

• fixed
• dropping
• for compensations
• lowered beams

The props used can be:

• ECON
• POSTIS
• CEP20 e CEP30
• ALU-CP
